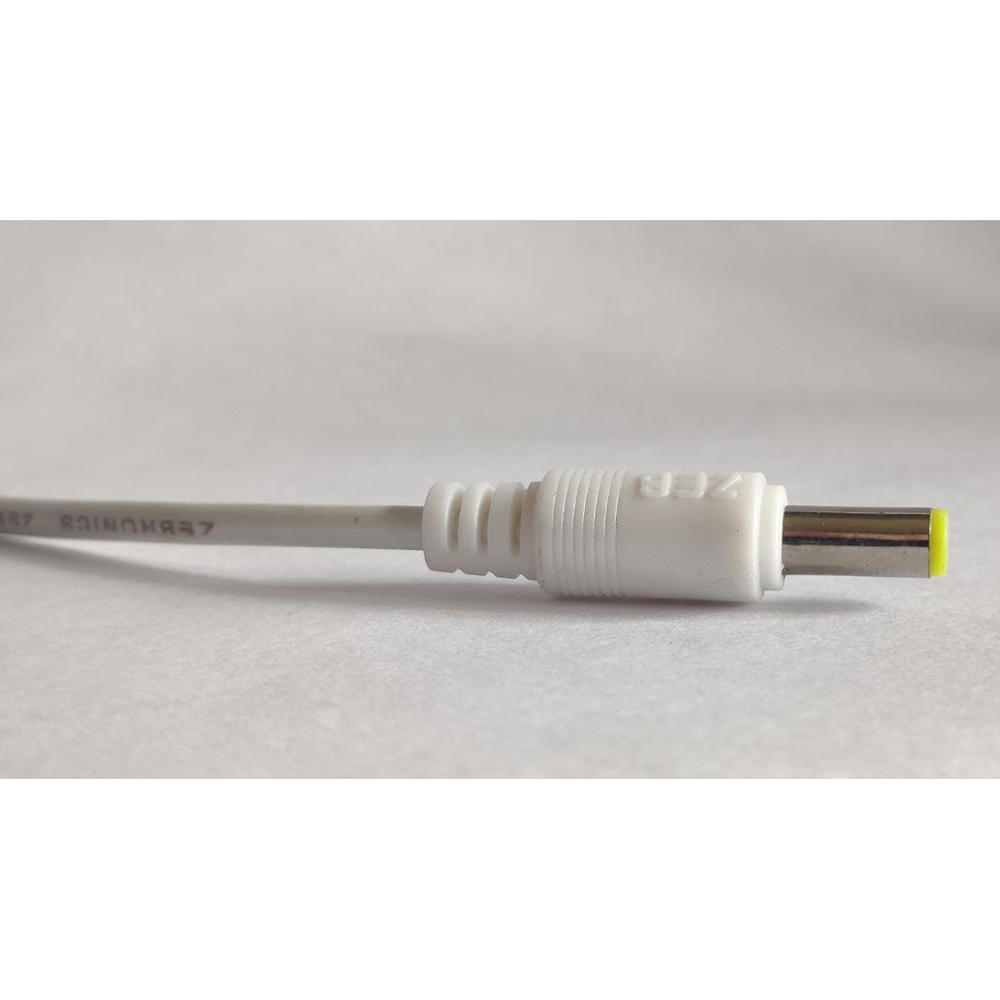

Male DC Power Barrel Jack Connector

Get a Price/Quote

MOQ : 10 Pieces

Male DC Power Barrel Jack Connector Specification

Features
Easy to connect, robust and durable, provides stable power connection

Install Type
Plug-and-play

Diameter
5.5mm (outer barrel)

Insulation
PVC

Rated Temperature
-20C to +70C

Tensile Strength
Adequate for general handling, not intended for heavy duty applications

Locking Type
Non-locking

Cable Type
DC power cord with male barrel plug

Number of Conductor
2

Impedance
Not specified (typical for DC power connectors)

Conductor Shape
Round

Core Material
Copper

Weight
Approx. 8g

Operating Temperature
-20C to +70C

Conductor Type
Single core or twin core (positive and negative wires)

Usage & Applications
Powering small electronic devices, cameras, routers, and hobby projects

Core Number
2

Product Type
Male DC Power Barrel Jack Connector

Length
Typically ranges from 0.2m to 2m (custom lengths available)

Voltage
Up to 24V DC (standard application 5V, 9V, 12V, or 24V)

Insulation Material
PVC

Application
Power supply for adapters, CCTV cameras, routers, and electronic projects

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-25C to +80C

Connector Color
Black with yellow tip

Shield Material
None (unshielded)

Jacket Color
Black

Dimension (L*W*H)
Approx. 38mm (length) x 12mm (width x height at connector housing)

Color
Black with yellow tip

Material
Plastic housing with metal barrel, copper core

Size
Barrel outer diameter 5.5mm, inner pin diameter 2.1mm or 2.5mm (type-dependent)

Current Rating
Up to 3A depending on wire gauge

Compliance
RoHS compliant

Contact Resistance
<30m max

Plug Tip Type
Hollow cylindrical (barrel)

Insulation Resistance
>100M at 500V DC

Connector Gender
Male

Mating Cycles
Over 1000 insertions/withdrawals

Polarity
Center positive (standard for most applications, but should be checked per device)

Fire Resistance
V-0 rated PVC (on request)

Mounting Style
Cable mount (in-line)

Male DC Power Barrel Jack Connector Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Male DC Power Barrel Jack Connector

Explore the exceptional Male DC Power Barrel Jack Connector, meticulously designed for robust performance and optimal power delivery. Formidable in durability, this connector features impeccable contact resistance below 30m and outstanding insulation resistance above 100M at 500V DC. Grab your connector at the lowest price from a trusted manufacturer, supplier, and trader in India. Ideal for powering adapters, CCTV cameras, routers, and DIY electronics projects, its cable mount style, V-0 rated fire-resistant PVC (on request), and easy plug-and-play design ensure stable, secure connections every time. Compatible with 5V, 9V, 12V, and 24V systems, it's crafted for reliability and safety.

Distinctive Features & Versatile Commercial Uses

The Male DC Power Barrel Jack Connector stands out with an impeccable hollow cylindrical tip, ensuring secure connections for power adapters, CCTV installations, routers, and custom electronic projects. Its in-line, cable-mount style makes it exceptionally easy to install, while its durability extends beyond 1000 mating cycles. Tailored for both standard and customized lengths, users can confidently rely on its robust construction for flawless operation across a wide spectrum of industry and hobby applications. Simple plug-and-play usage saves time and lowers installation complexity.

Payment Terms, Certifications & Sample Provision

Goods transport is swiftly organized after order completion, with flexible payment terms available for bulk and retail customers. Each connector is meticulously RoHS compliant and, upon request, V-0 fire-resistant for peace of mind. Samples are available to potential buyers before large orders are handed over, ensuring product confidence. Our efficient order handling and certifications meet the highest standards required for commercial and industrial applications, guaranteeing a smooth procurement process for all customers.

FAQ's of Male DC Power Barrel Jack Connector:

Q: How do I determine if the barrel jack's polarity matches my device?

A: Most devices use center positive polarity, but you should always check your device's requirements or manual before connecting to ensure compatibility and prevent possible damage.

Q: What are the typical commercial uses of this Male DC Power Barrel Jack Connector?

A: The connector is commonly employed in power supplies for adapters, CCTV camera systems, Wi-Fi routers, and various electronic projects where reliable DC power input is essential.

Q: When can I expect my order to be handed over after purchase?

A: Orders are processed promptly after completion, and goods are handed over to the transport provider as per the agreed shipping schedule. Bulk and retail timelines may vary; please confirm at order placement.

Q: Where can I request a sample before placing a bulk order?

A: You can contact us directly as a manufacturer or supplier in India to request product samples. Samples are typically provided before finalizing large purchases.

Q: What kind of certification does this connector hold?

A: The Male DC Power Barrel Jack Connector is RoHS compliant, and V-0 fire-resistant PVC insulation is available upon request, ensuring adherence to key safety and environmental standards.

Q: How do I use this connector for my electronics project?

A: Simply connect the barrel plug's wires to your device's power wires, observing correct polarity. Insert the plug into the device's DC input for immediate, stable power delivery.
