Coaxial Connector

• Application
• Other, Power supply for adapters, CCTV cameras, routers, and electronic projects

• Cable Type
• DC power cord with male barrel plug

• Color
• Black with yellow tip

• Conductor Material
• Copper

• Conductor Shape
• Round

• Conductor Type
• Other, Single core or twin core (positive and negative wires)

• Connector Color
• Black with yellow tip

• Core Material
• Copper

• Core Number
• 2

• Diameter
• 5.5mm (outer barrel)

• Dimension (L*W*H)
• Approx. 38mm (length) x 12mm (width x height at connector housing)

• Features
• Easy to connect, robust and durable, provides stable power connection

• Impedance
• Not specified (typical for DC power connectors)

• Install Type
• Plug-and-play

• Insulation
• PVC

• Insulation Material
• PVC

• Jacket Color
• Black

• Jacket Material
• PVC

• Length
• Typically ranges from 0.2m to 2m (custom lengths available)

• Locking Type
• Non-locking

• Material
• Plastic housing with metal barrel, copper core

• Number of Conductor
• 2

• Operating Temperature
• -20C to +70C

• Product Type
• Male DC Power Barrel Jack Connector

• Rated Temperature
• -20C to +70C

• Shield Material
• None (unshielded)

• Size
• Barrel outer diameter 5.5mm, inner pin diameter 2.1mm or 2.5mm (type-dependent)

• Storage Temperature
• -25C to +80C

• Tensile Strength
• Adequate for general handling, not intended for heavy duty applications

• Usage & Applications
• Powering small electronic devices, cameras, routers, and hobby projects

• Voltage
• Other, Up to 24V DC (standard application 5V, 9V, 12V, or 24V)

• Weight
• Approx. 8g

• Application
• Other

• Cable Type
• Coaxial

• Color
• Silver body, white/black jacket

• Conductor Material
• Other, Brass (Nickel or Gold plated)

• Conductor Shape
• Round

• Conductor Type
• Solid

• Connector Color
• Silver

• Core Material
• Copper

• Core Number
• Single core

• Diameter
• 13 mm

• Dielectiric Strength
• 1000V RMS

• Dimension (L*W*H)
• Standard BNC size (approx. 30mm x 13mm dia.)

• Features
• Quick connect/disconnect, Secure locking, Low signal loss

• Impedance
• 50 Ohm or 75 Ohm

• Install Type
• Panel mount / Cable mount

• Insulation
• High-grade PTFE

• Insulation Material
• Other

• Jacket Color
• Other

• Jacket Material
• PVC

• Length
• Customizable (commonly 1-5 meters)

• Locking Type
• Bayonet Lock

• Material
• Metal (Brass with nickel/gold plating)

• Number of Conductor
• 1

• Operating Temperature
• -55C to +85C

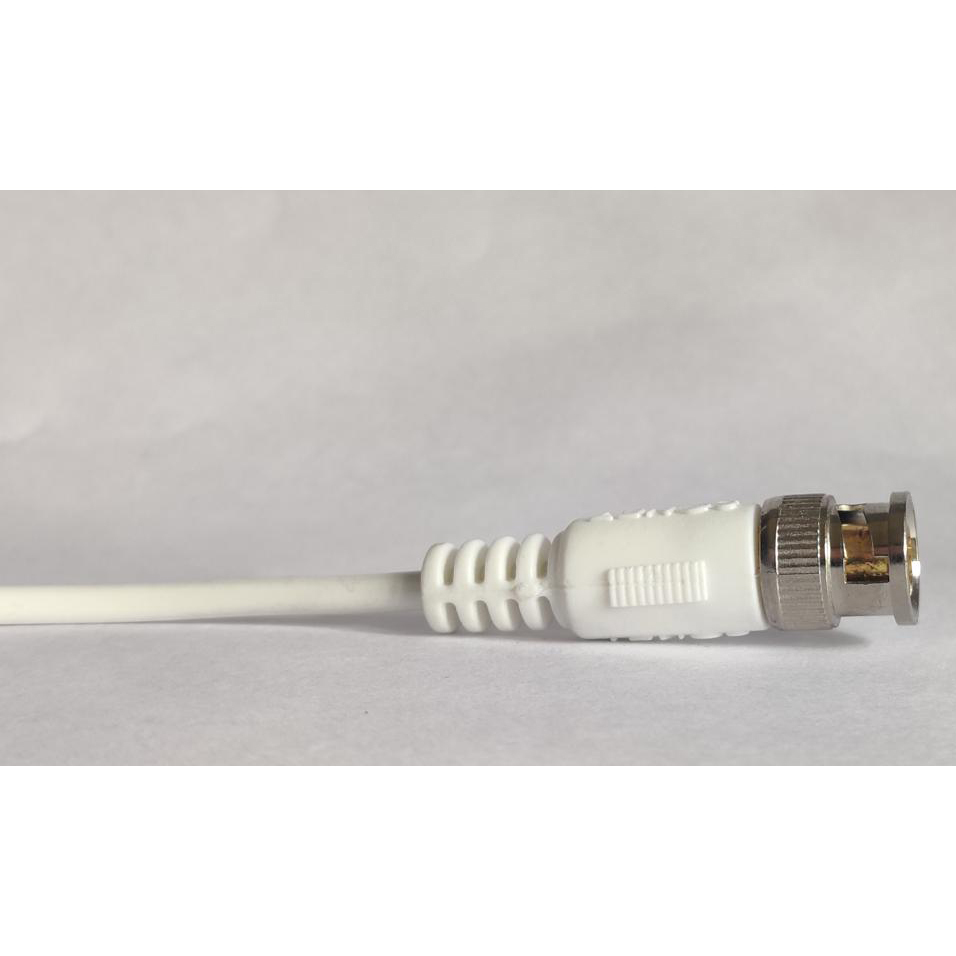

• Product Type
• BNC Coaxial RF Connector

• Rated Temperature
• -55C to +85C

• Shield Material
• Braided copper

• Size
• Standard BNC dimensions

• Storage Temperature
• -40C to +80C

• Tensile Strength
• High mechanical durability

• Usage & Applications
• Video surveillance, test instruments, TV broadcasting, RF equipment

• Voltage
• Other, 500V max

• Weight
• Approx 10-15g per piece

• Application
• Other, Water, Steam, Oil and Alkali Resistant Gasket Applications

• Color
• Reddish Brown

• Diameter
• Customizable as per requirement

• Dimension (L*W*H)
• Standard Size: 1500 mm x 1500 mm (custom sizes available)

• Features
• Compressed non-asbestos fibre jointing sheet, resistant to water and moderate alkaline chemicals, good sealing properties

• Install Type
• Flange Gasket Installation

• Jacket Color
• Other, Reddish Brown

• Length
• As per requirement / standard sheets size

• Material
• Non-Asbestos Fibre, Synthetic Binder

• Operating Temperature
• Up to 200C

• Outer Material
• Non-Asbestos Fibre with Synthetic Rubber Binder

• Packaging Size
• Available in Sheets and Gasket Cut Sizes

• Product Type
• Jointing Sheet/Gasket Sheet

• Rated Temperature
• Up to 200C

• Size
• 1.5 mm, 2 mm, 3 mm & custom thickness

• Standard
• IS, BS, DIN Specifications

• Storage Temperature
• Store in cool, dry place

• Tensile Strength
• 11.5 Mpa (minimum)

• Usage & Applications
• Water pipelines, steam lines, oil industry, chemical plants, generators

• Weight
• Depends on size and thickness

• Color
• GREEN

• Conductor Material
• Other

• Conductor Type
• Other

• Dimension (L*W*H)
• 150015001.5 Millimeter (mm)

• Features
• General purpose BS7531 Grade Y Asbestos-Free (AF) Jointing sheet, compressed aramid fibres, nitrile rubber binder.

• Jacket Material
• Other

• Length
• 1500 Millimeter (mm)

• Material
• Compressed Aramid Fibres with Nitrile Rubber Binder.

• Product Type
• Gasket Jointing Sheet / Non-Metallic Gasket.

• Rated Temperature
• 350 C Celsius (oC)

• Standard
• BS7531 Grade Y / ASTM F 152 / ASTM F 36

• Tensile Strength
• ASTM F 152 10 N/mm2 Kilopascals (KPa)

• Armored Material
• N/A

• Armour Type
• N/A

• Cable Type
• N/A

• Color
• Black

• Conductor
• N/A

• Conductor Material
• Other

• Conductor Shape
• Other

• Conductor Type
• Other

• Connector Color
• N/A

• Connector Size
• N/A

• Core Material
• N/A

• Core Number
• N/A

• Dielectiric Strength
• 10 Newtons per Millimetre Squared (N/mm2)

• Dimension (L*W*H)
• 150015003 Millimeter (mm)

• Features
• General purpose Asbestos-Free (AF) Jointing sheet with wire re-inforcement, anti-stick properties.

• Insulation Material
• Other

• Jacket Color
• Other

• Jacket Material
• Other

• Length
• 1500 Millimeter (mm)

• Material
• Compressed aramid fibres with nitrile rubber binder and wire re-inforcement.

• Number of Conductor
• N/A

• Outer Material
• N/A

• Packaging Size
• N/A

• Product Type
• Metallic Gasket Jointing Sheet / Non-Metallic Gasket

• Rated Temperature
• 250 Celsius (oC)

• Shield Material
• N/A

• Standard
• BS7531 / ASTM F 152 / ASTM F 36

• Tensile Strength
• 10000 Kilopascals (KPa)

• Weight
• 14 Kilograms (kg)
